Dual boot your Hackintosh on the same disk.

Disclaimer:

“Please make sure you have back up of your precious data before attempting to create the USB disk and when you select the destination disk to install Windows on, I don’t take any responsibility for your data loss because I presume that you know what you are doing.”

Important note 1:

  • Before performing the tasks in this guide make sure you have a backup of your files.
  • It’s best to have a USB disk with Windows to Go on another USB disk just in case. You can use Rufus to create the Windows To Go USB disk.

Requirements:

  1. Windows installation ISO file.
  2. USB disk with at least 8 GB or larger for the bootable Win2HDD. Make sure to backup any files on the USB disk it will be formatted. make sure the USB is formatted as MBR.
  3. A computer with Windows to create the installer and copy the Microsoft ISO files to the USB disk for installation if you want to.
  4. macOS USB installer with Clover or OpenCore bootloader.
  5. A hard disk or SSD to install macOS and Windows on.

How to prepare the Hard Disk:

  • Use your macOS Bootable USB disk and boot into macOS installer.
  • Select Disk Utility then Select the disk you want to use to dual boot

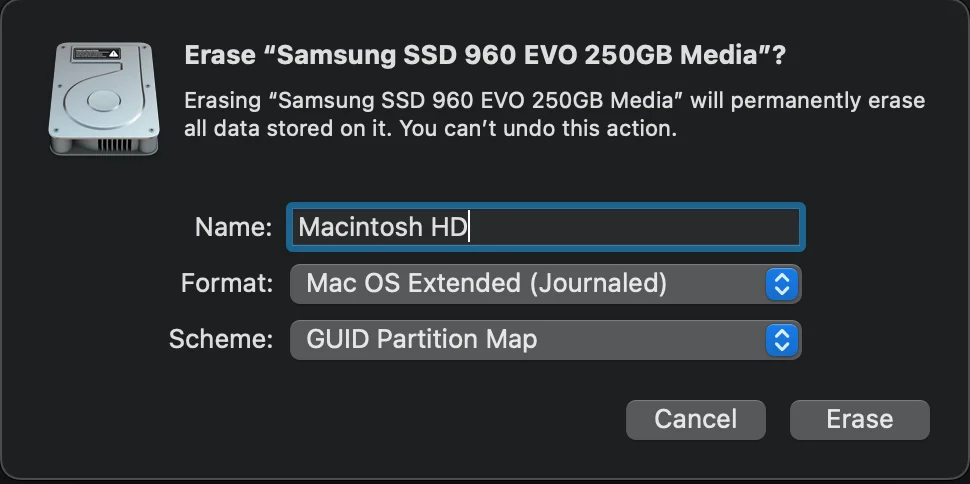

  • Erase the disk using any name you want select Mac OS Extended (Journaled) as Format and select GUID Partition Scheme.
  • Do not use APFS format because it might complicate things, once macOS is installed it wil automatically convert the file system to APFS.

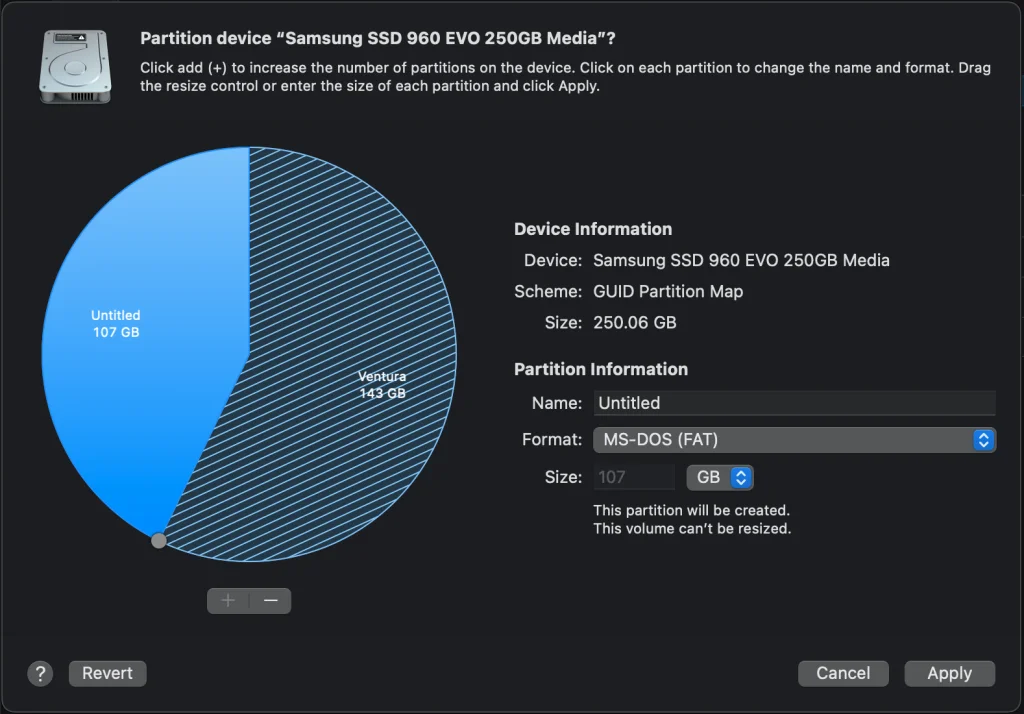

  • Now select the disk and then select Partition. Add another partition and name it whatever you want and set the format to MS-DOS (FAT)

Quit Disk Utility and install macOS normally once the installation is done you can install Windows.

Installing Windows:

  • Use the Win2HDD usb disk to boot your computer and start the installation process.
  • You need to convert the FAT partition to NTFS in order to install Windows so you need to open the Tools menu in Win2HDD and open Command Prompt
  • Once the Command Prompt window is open Type diskpart and hit Enter.
  • Once you enter to the diskpart screen type list disk and hit Enter.
  • Now a list of the disks will be shown, type select disk x (the X is the disk number that you’ve formatted as FAT) and hit Enter.
  • After the creating is done, type select partition x and hit Enter.
  • Now that you are in the new partition, you need to format it by typing format fs=ntfs quick and hit Enter.
  • After that, type assign and hit Enter.
  • Then, type active and hit Enter.
  • Now, your new partition is ready to use.

If you create the partition as free space you need to allocate the free space first then create the partition:

  • In Command Prompt type diskpart and hit Enter.
  • Once you enter to the diskpart screen type list disk and hit Enter.
  • Now a list of the disks will be shown, type select disk x (the X is the disk number that has an unallocated space) and hit Enter.
  • Type create partition primary size=x (The X is the number that you got from the Free column on the previous step) and hit Enter.
  • After the creating is done, type select partition 2 and hit Enter.
  • Now that you are in the new partition, you need to format it by typing format fs=ntfs quick and hit Enter.
  • After that, type assign and hit Enter.
  • Then, type active and hit Enter.
  • Now, your new partition is ready to use.

I’m not affiliated with Hasleo Software (formerly known as EasyUEFI Development Team) and this article is not sponsored by them or anyone else.

Let’s get started:

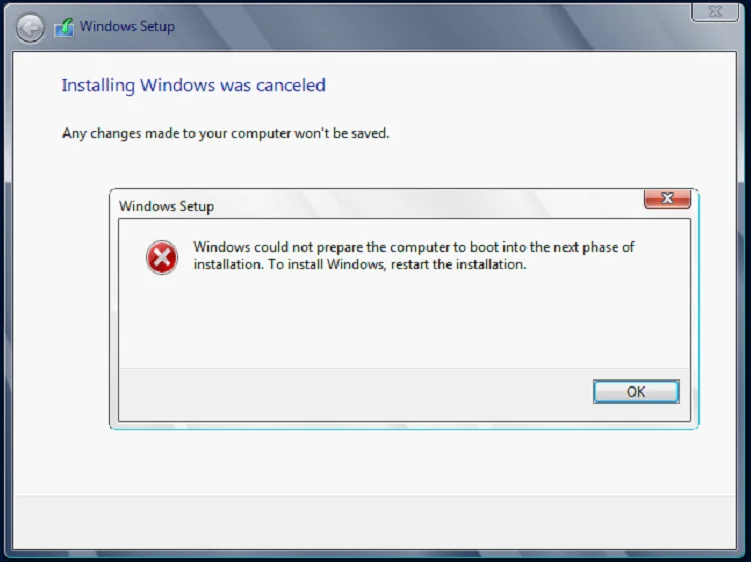

As a Hackintosher you might have encountered the issue when you want to install Windows on your system and you already have macOS installed using Clover or OpenCore bootloaders and that’s when you’ll run into the “Windows could not prepare the computer to boot into the next phase of installation. To install windows, restart the installation.”

The reason for this error is that macOS uses GUID Partition Table (GPT) which is different than Windows’s GPT format therefore you won’t be able to install Windows if you already have macOS installed even on another disk, there’s also another issue with EFI partition’s size in Apple’s GUID and Microsoft’s GTP scheme.

There are few workarounds to fix this issue but they might be more complicated and not as easy to achieve but what I have recently found is easy enough and it is working pretty well.

Even though the application costs $29.95 they offer a free version of it which is for personal use and has limited options, so if you need to use to for commercial use or if you need to buy a license.

The application is called Win2HDD

In this guide I’m going to show you how to use it and easily install Windows on. You can either use a USB disk or you can use an internal or external hard disk drive.

How to use Win2HDD:

First you need to prepare the USB disk and make it bootable. Run WinToHDD, then click the “Multi-installation USB” button.

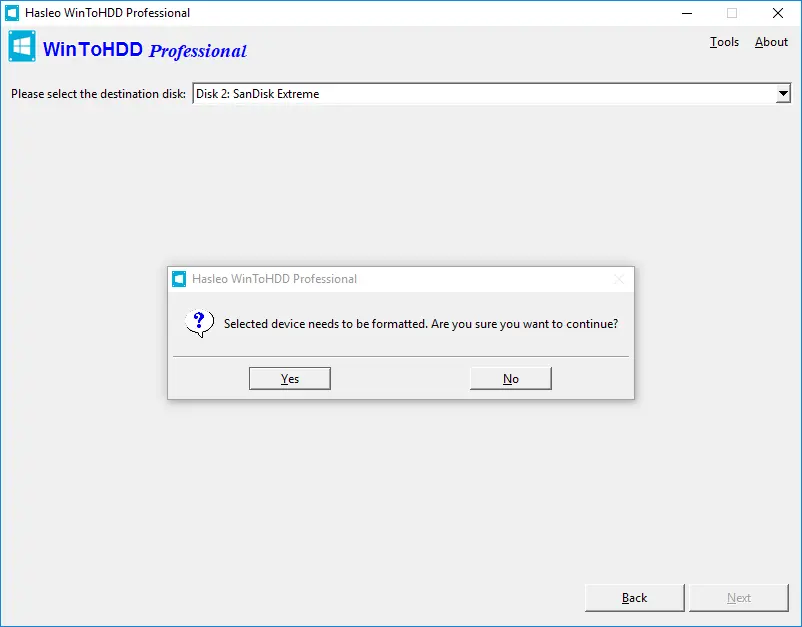

Select the USB drive in the drop-down list. If your USB drive is not correctly recognized by WinToHDD, you need to click the   button for the program to recognize the USB drive. After you select the USB drive, a pop-up will appear asking you if you want to format it to continue.

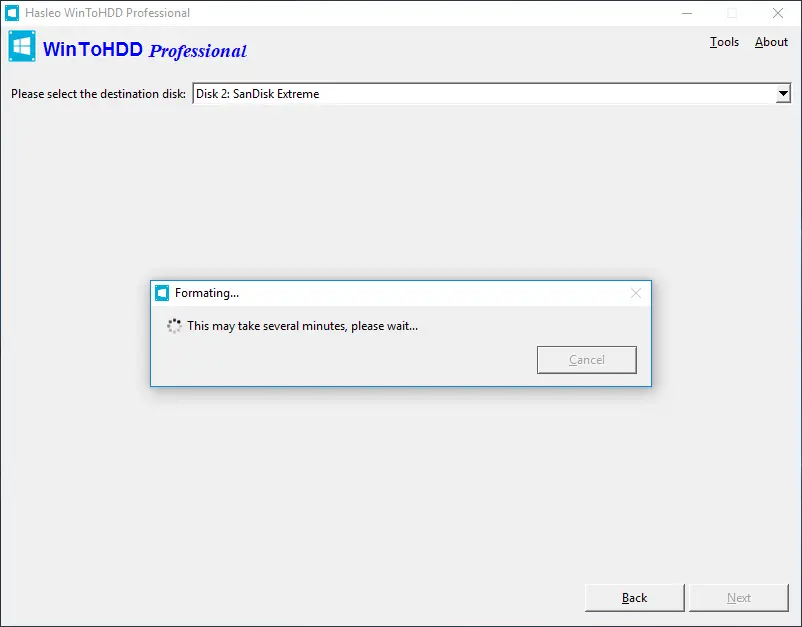

Click “Yes”. After clicking “Yes”, WinToHDD begins formatting. Please wait until that format operation is complete.

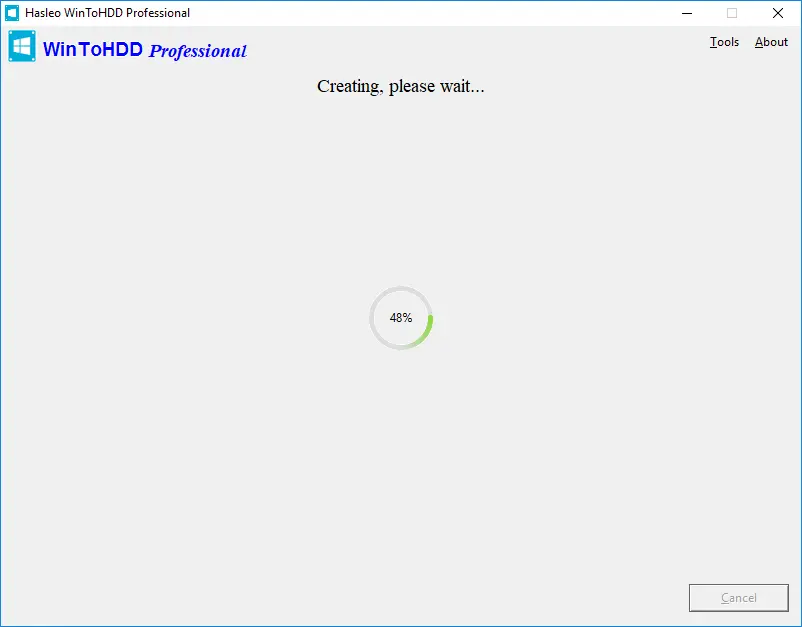

After successfully formatted the USB drive, click “Next”, WinToHDD begins creating the Windows installation USB drive.

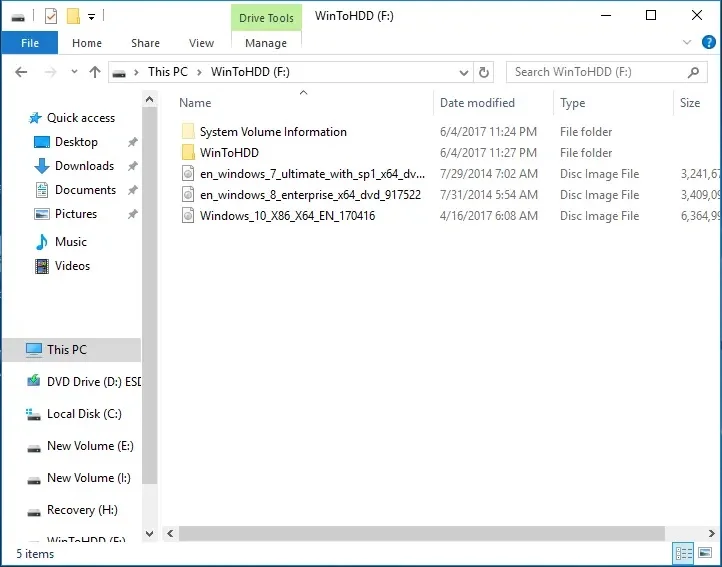

After a while the USB disk will be ready and you can copy the ISO installer image to the USB disk or you can just boot from the USB and locate the ISO installer from your computer.

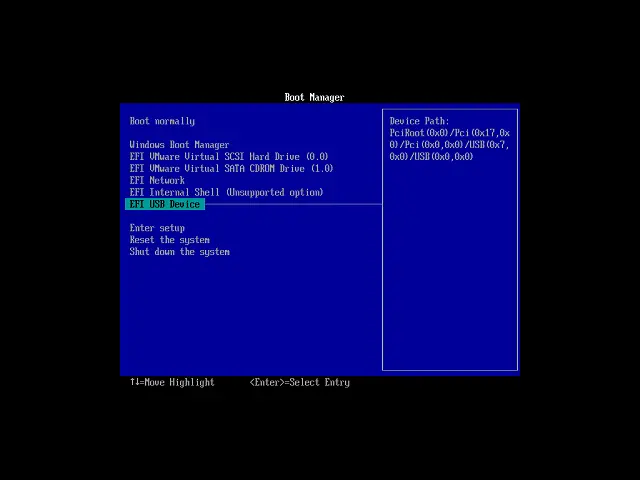

Once the USB is ready reboot your computer and use your UEFI/BIOS boot manager to boot from the uSB disk. (For Asus use F8, for Gigabyte use F12 and for ASRock and MSI use F11)

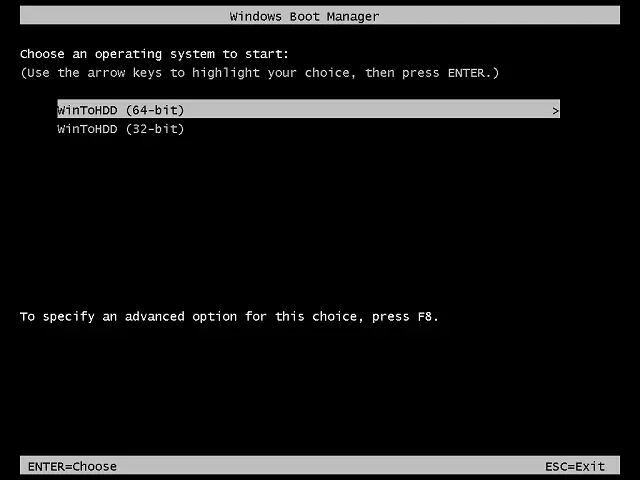

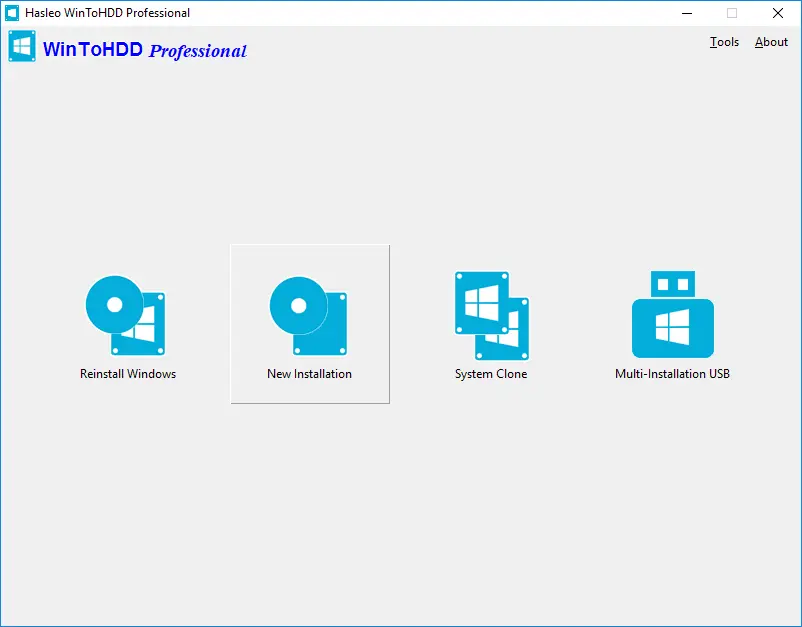

Once the Win2HDD is booted select “New Installation”

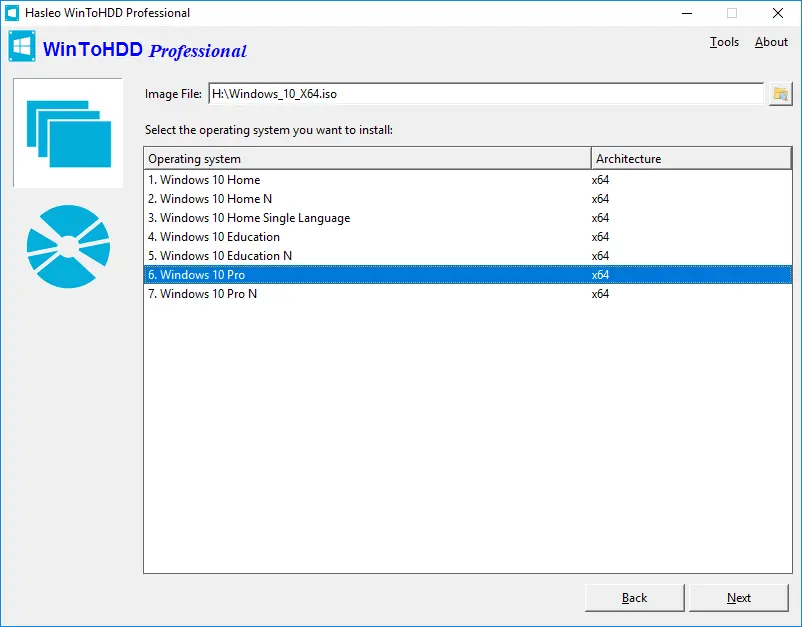

You can select the ISO file that you want to install on your system

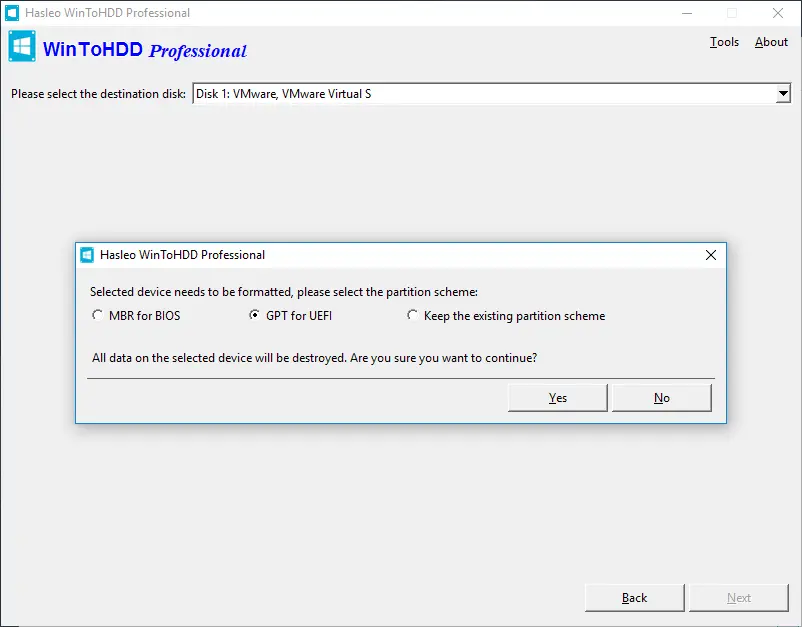

Click next to select the destination disk you want to install Windows on, just make sure you select the correct disk so you won’t lose any data in the process. You can also select the proper format for your hard disk’s boot scheme.

Important Note 2:

  • Selecting the MBR for BIOS or GPT for UEFI will format the destination disk and you will lose all the data on that disk so select “Keep the existing partition scheme” if you have data on the disk. So do not use it on to dual boot your system on the same disk.
  • Keep the existing partition scheme feature isn’t available in free versions.

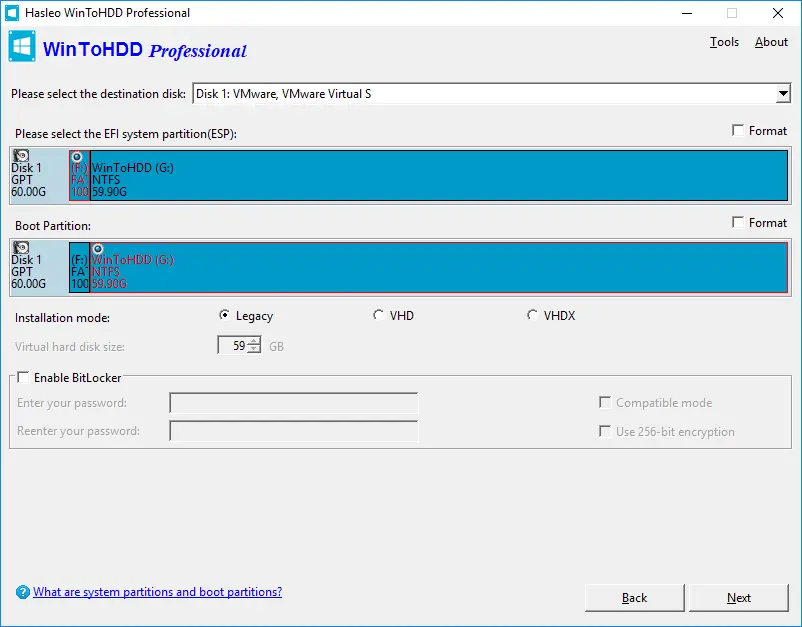

Now select the boot partition and system partition from the partition list selected partitions will be marked as red so make sure to select the correct partitions.

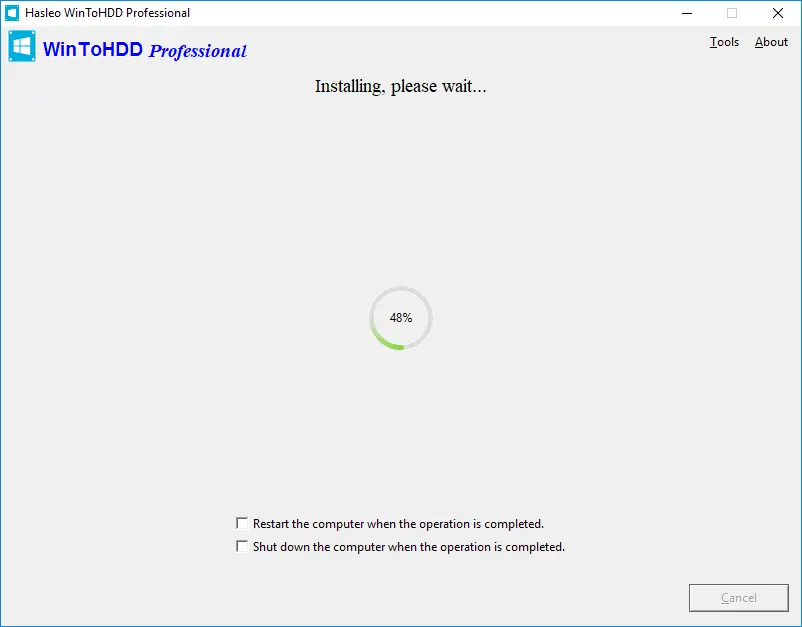

Once the installer files are copied to the destination you can reboot and continue the rest of the installation process.

Prior to this I had to detach all the disks for installing Windows except for the one I wanted to install Windows on and it was a pain in the neck specially when you have multiple M.2 or NVMe disks but now it’s pretty easy and fast.

If you don’t have access to another computer t create the USB disk then the only easier option is to detach all the disks from your computer except for the one you are try installing Windows on.
